Mody Kart: Faza 3

Obnovleno - Sentyabr' 2021 Avtor: Marcos Elias

Vvedeniye

Faza 3 sistemy modifikatsii kart Proton Bus vvodit Transportnyy Trafik, Poyezda, Funktsional'nyye Svetofory i GPS!

VAZHNO: Chtoby ispol'zovat' eti funktsii, izmenite na mapModVersion=3 v razdele [map] vashego fayla .map.txt.

Nastroyka Tochek Vkhoda (Obnovleniye Fazy 3)

V faze 3 entrypoints.txt poluchayet novyye parametry.

Vy mozhete ukazat', yavlyayetsya li eto Shosseynym ili Gorodskim marshrutom, sozdav pustyye fayly v papke dest:

  • intercity.txt: Shosseynyy Marshrut (passazhiry vakhodyat tol'ko v kontse).
  • outofservice.txt: Garazh/Zarezervirovano (nikto ne saditsya).

Transportnyy Trafik (aivehicles)

Nastroyka pokhozha na peshekhodov. Sozdayte puti (paths) v 3D (napr.: avBrasil1.000, avBrasil1.001...).

Transportnyy Trafik

Fayl konfiguratsii (.txt)

V papke aivehicles (vnutri modelsDir):

[automatic_setup]
enabled=1
loop=0
reverse=0

[defaults]
isSpawner=1
spawnInterval=5
allowBicycle=0
leftBlinker=0
rightBlinker=0
  • spawnInterval: Interval dlya poyavleniya novykh mashin (uvelich'te, chtoby umen'shit' plotnost').
  • maxSpeed: Maksimal'naya skorost' v km/ch.
  • isBusSpawner=1: Yesli vy khotite, chtoby avtobusy poyavlyalis' na etom puti.

Poyezda (aitrains)

Poyezda sleduyut po opredelennym rel'sam tak zhe, kak i trafik. Papka: aitrains.

Primer Poyezda

Eksklyuzivnyye parametry poyezdov:

  • randomTimeToWaitAtStart=1: Pervyy poyezd poyavlyayetsya v sluchaynoye vremya.
  • spawnTimeInterval=120: Interval v sekundakh mezhdu poyezdami (napr.: 2 minuty).
  • trainType=0: Tip poyezda (po umolchaniyu 0).

VAZHNO: Poyezda ne stalkivayutsya s prepyatstviyami, poetomu ubedites', chto put' svoboden! Ispol'zuyte vysokiy spawnTimeInterval, chtoby poyezda ne shli odin za drugim.

Svetofory (Traffic Lights)

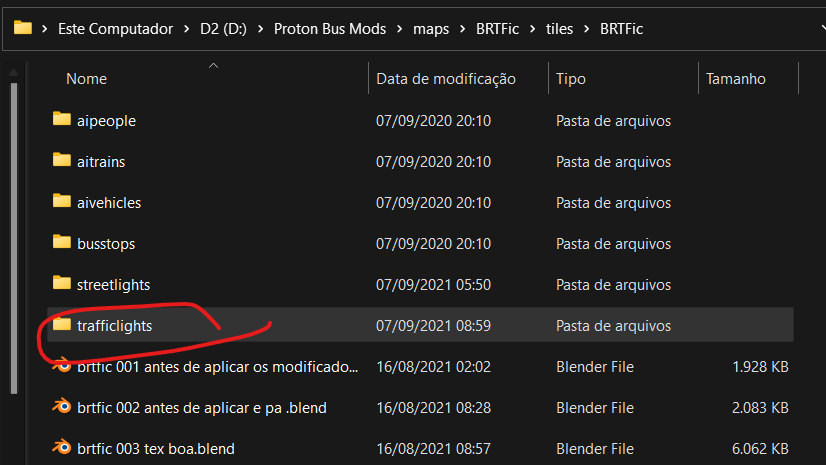

Svetofory kontroliruyut potok transportnykh sredstv. Fayly nakhodyatsya v papke trafficlights.

Struktura Svetoforov

Rabota po "Tikam"

Svetofor rabotayet po sostoyaniyam ili "tikam". Primer:

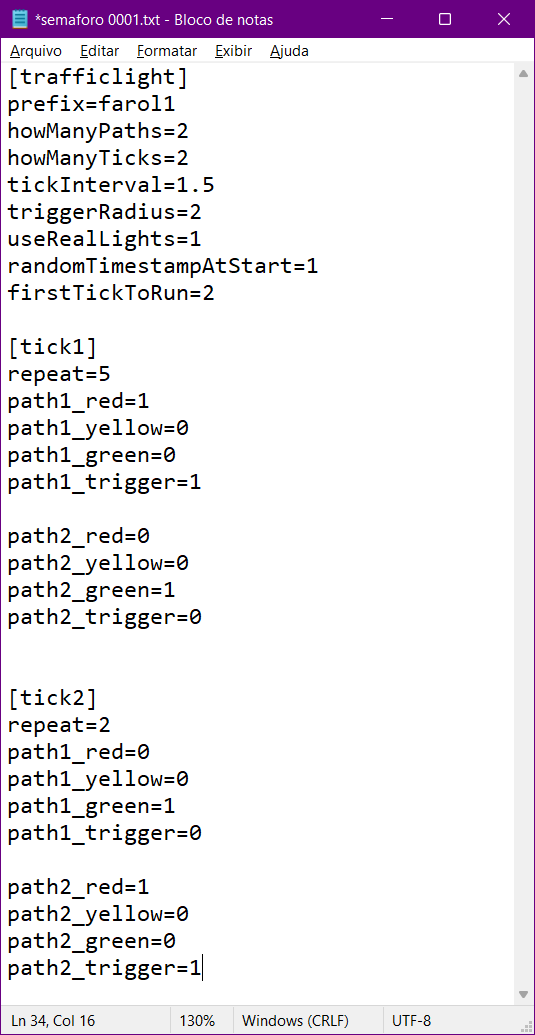

Skhema Tikov

  1. Tik 1: Polosa 1 Zelenyy, Polosa 2 Krasnyy.
  2. Tik 2: Polosa 1 Zheltyy, Polosa 2 Krasnyy.
  3. Tik 3: Polosa 1 Krasnyy, Polosa 2 Zelenyy.

Konfiguratsiya v txt:

[trafficlight]
prefix=semaforo001
howManyPaths=2
howManyTicks=4
tickInterval=1
triggerRadius=1.5
useRealLights=1

[tick1]
repeat=10
path1_red=0
path1_green=1
path2_red=1
path2_green=0
path1_trigger=0
path2_trigger=1
  • pathX_red/green/yellow: Opredelyayet, vklyuchen li svet (1) ili vyklyuchen (0).
  • pathX_trigger: Opredelyayet, aktivna li nevidimaya blokirovka na doroge (1) ili net (0).

Konfiguratsiya 3D

Ispol'zuyte ploskosti s teksturoy (sheyder Additive) dlya ogney. Predlagayemyye imena:

  • _farol1_path1_green_additive_
  • _farol1_path1_red_additive_

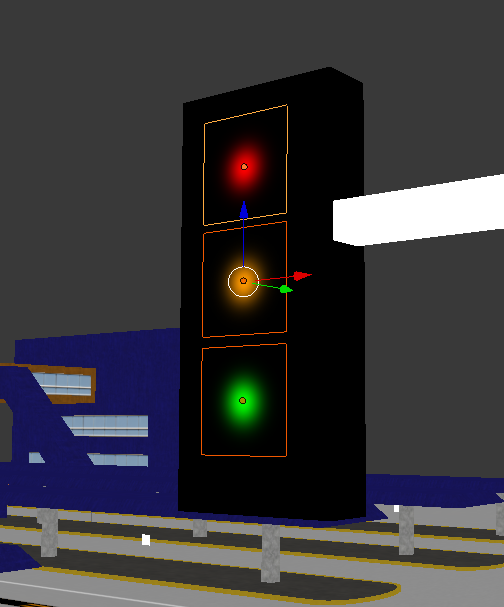

Svetofor 3D

Ispol'zuyte nevidimyye triggery, chtoby ostanovit' mashiny: _farol1_path1_trigger_

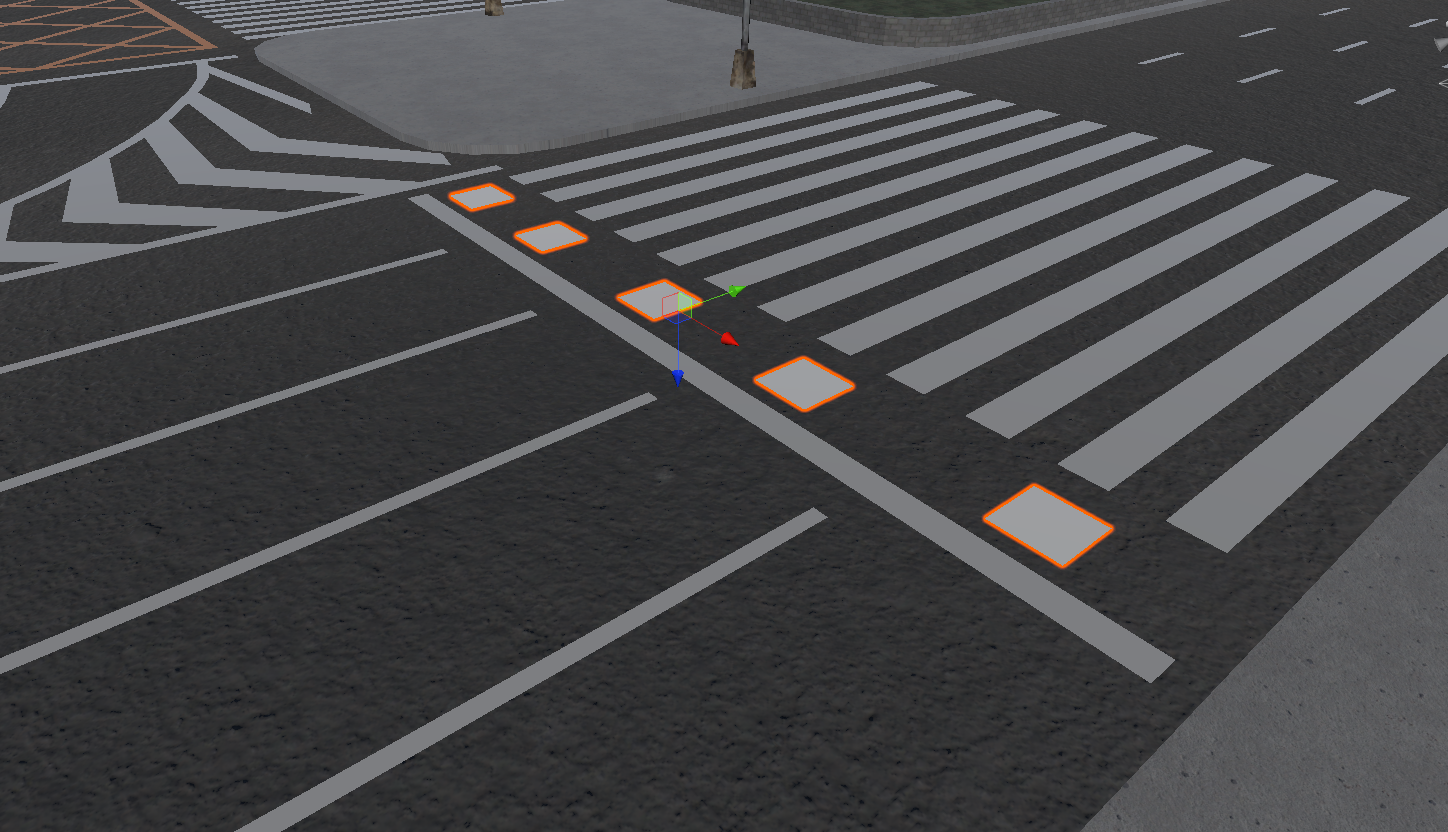

Trigger dolzhen nakhodit'sya tam, gde mashiny dolzhny ostanovit'sya:

Trigger Svetofora

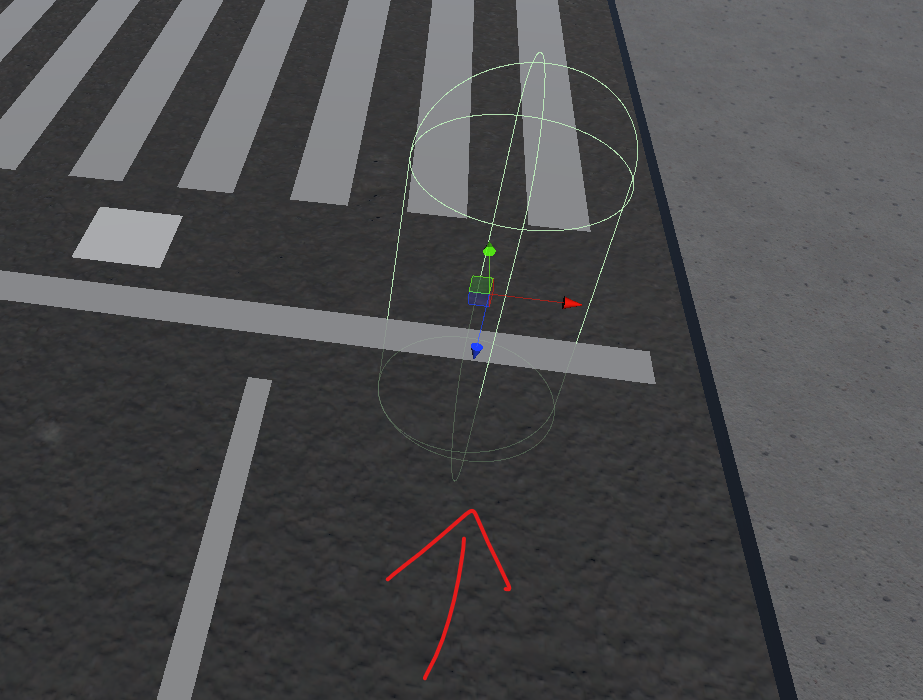

Forma triggera v dvizhke (kapsula):

Forma Triggera

Ogni i Okruzheniye

Vy mozhete dobavit' real'nyye ogni (Spot/Point) i fal'shivye (svetyashchayasya tekstura). Papka: streetlights.

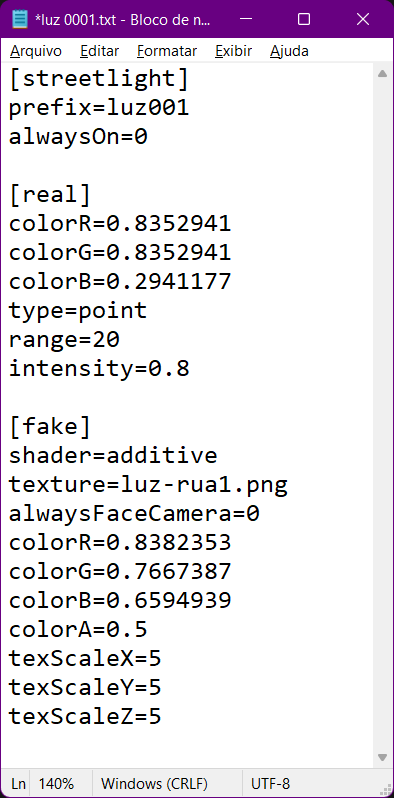

Konfiguratsiya Ogney

Konfiguratsiya v txt:

[streetlight]
prefix=luz001
alwaysOn=0 (0=tol'ko noch'yu, 1=vsegda)

[real]
colorR=1
colorG=0.9
colorB=0.8
range=20
intensity=1

[fake]
shader=additive
alwaysFaceCamera=1

V 3D:

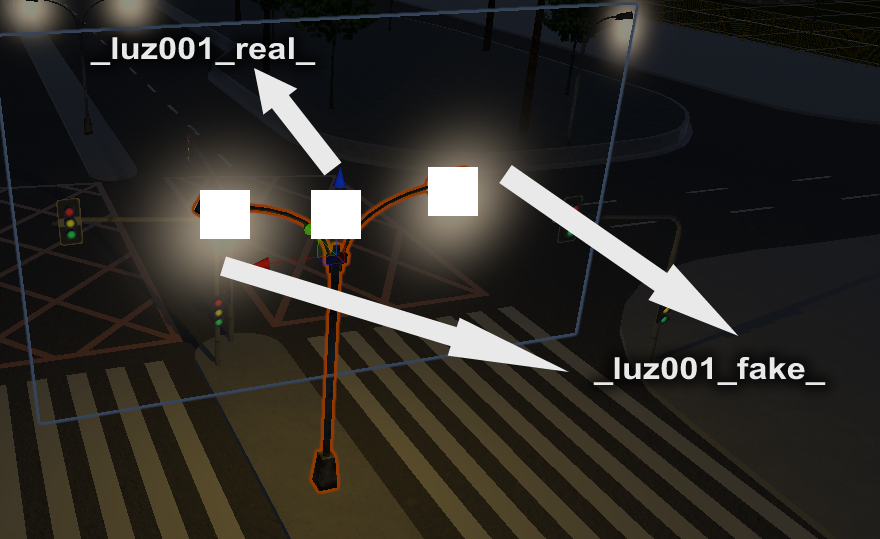

  • _luz001_real_: Ob"yekt dlya real'nogo sveta (point light). Razmestite nemnogo nizhe lampy.
  • _luz001_fake_: Ploskiy ob"yekt so svetyashcheysya teksturoy (galo) na lampe.

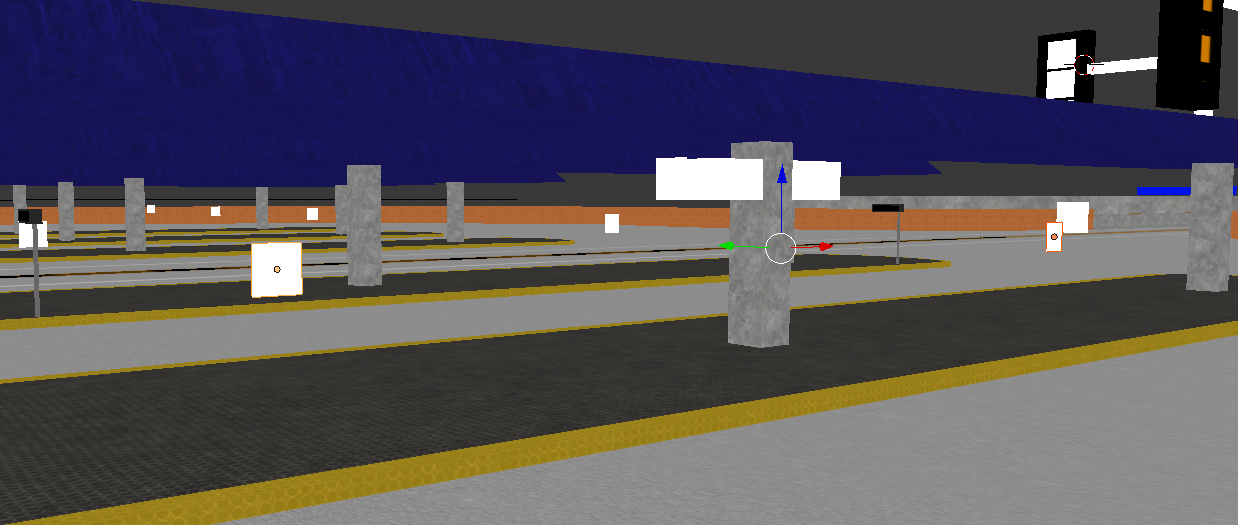

Primer Stolba

Primery primeneniya:

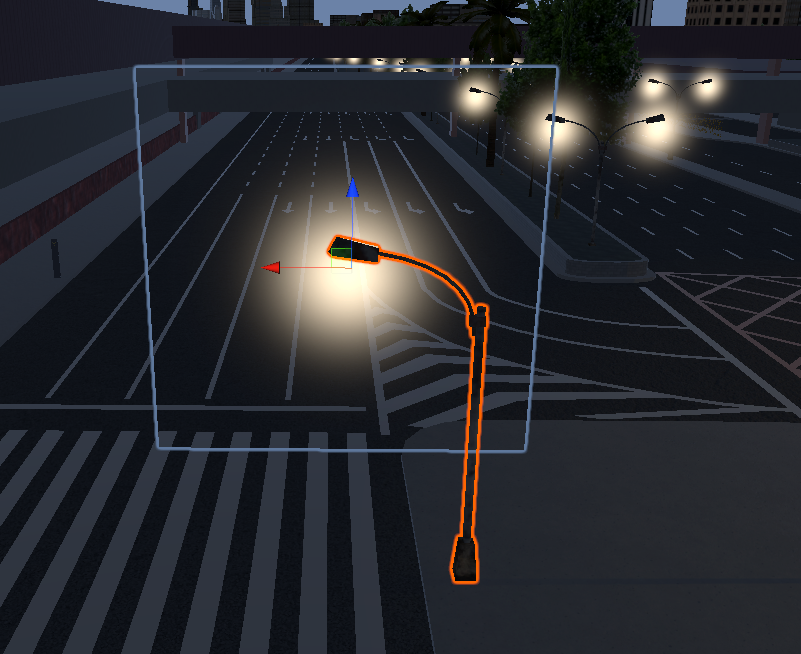

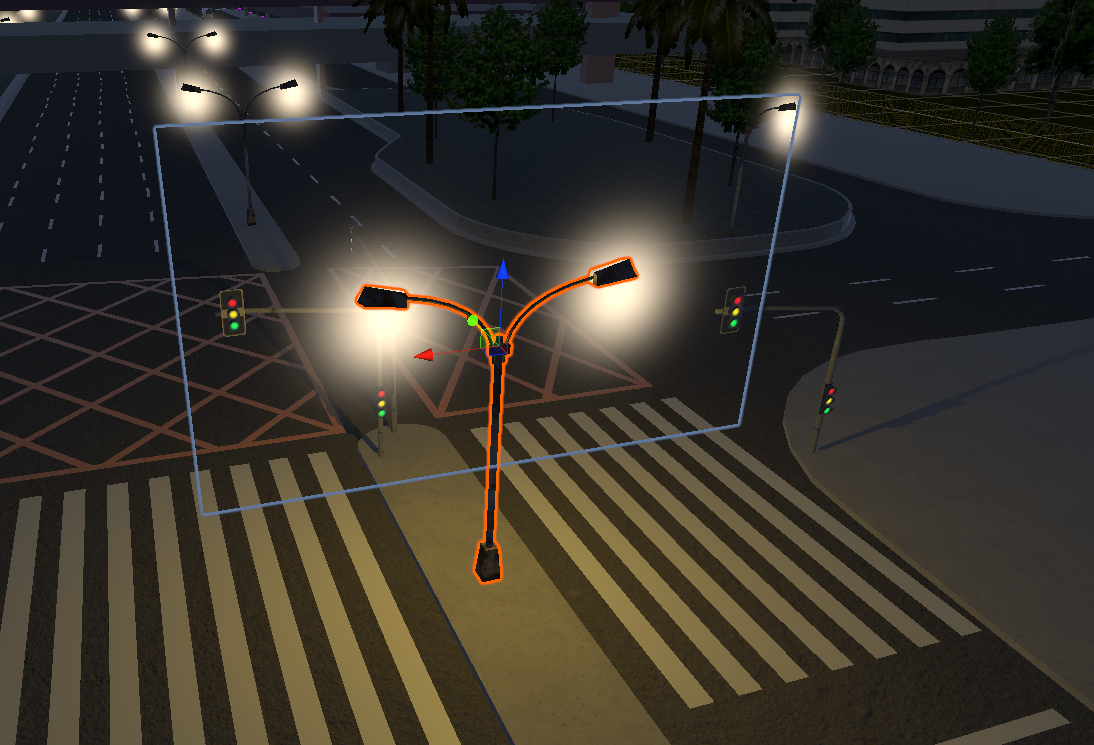

Dvoynoy Stolb Prostoy Stolb Zheltyy Svet

GPS

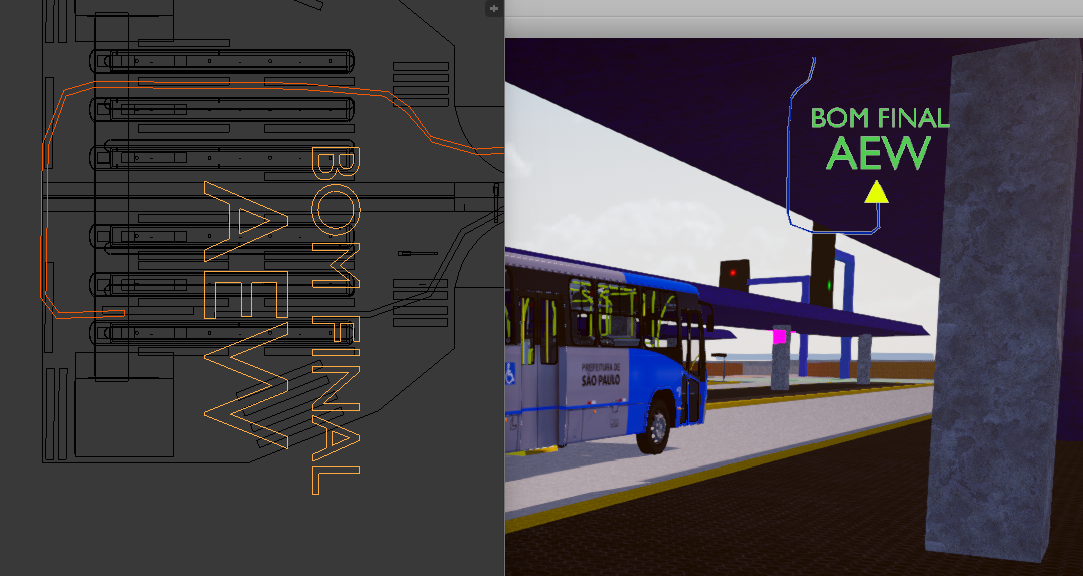

Chtoby GPS rabotal, sozdayte mesh, paryashchiy nad marshrutom (dorogoy) s imenem: _gps_IMYA_ENTRYPOINTA_

Primer: _gps_309T-10 TP_.

Primer GPS

SOVET: Yesli GPS ochen' dlinnyy, razdelite yego na boleye melkiye chasti dlya optimizatsii.

Optimizatsiya i Spetsial'nyye Komandy

Sluchaynyye Ob"yekty (_rand_)

Ispol'zuyte _rand_XX_ v imeni ob"yketa, chtoby opredelit' shans poyavleniya (v %). Primer: _rand_50_ (shans 50%).

Razreshennyye chisla: 1, 3, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 95, 99.

Sluchaynyy Ob"yekt

Spetsial'nyye Zony

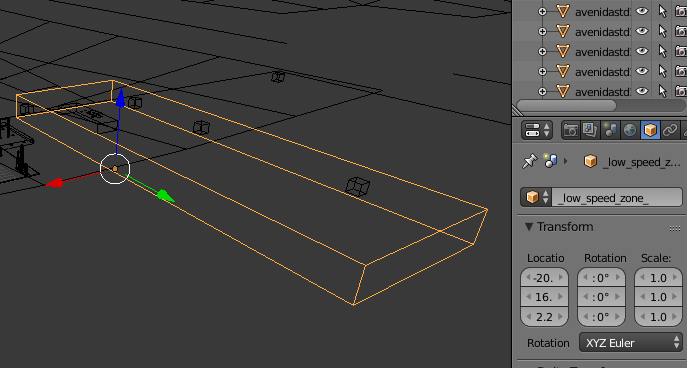

  • _low_speed_zone_: Nevidimyy kub v terminalakh. Predotvrashchayet zhaloby passazhirov na nizkuyu skorost'.

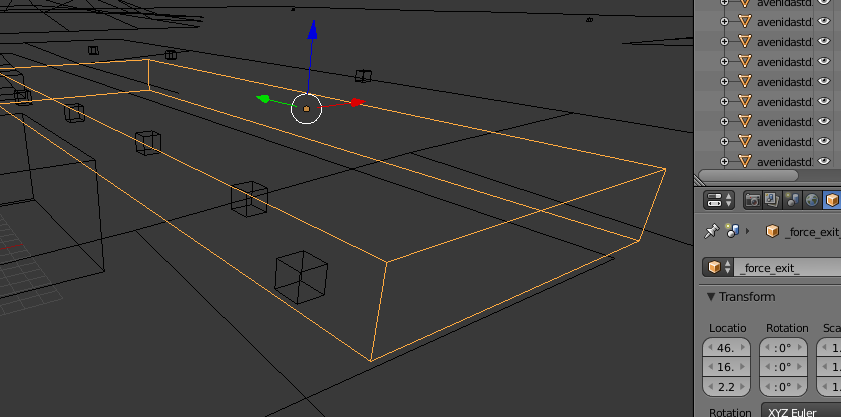

  • _force_exit_: Nevidimyy kub ryadom s konechnoy ostanovkoy. Zastavlyayet vsekh vyyti.

Force Exit

Dopolnitel'nyye Detali (_det1)

Ob"yekty, nazvannyye s suffiksom _det1.3ds (napr.: arvores_det1.3ds), zagruzhayutsya tol'ko yesli v igre vklyuchena optsiya "Dopolnitel'nyye Detali". Ispol'zuyte dlya tyazhelogo dekora.

Mertsayushchiye Tekstury (Z-Fighting)

Chtoby predotvratit' miganiye tekstur pola, sozdayte fayl .config.txt dlya tekstury (napr.: asfalto.png.config.txt).

Tekstura Config

Eto ispravlyayet "blesk" na bol'shikh teksturakh landshafta. Ispol'zuyte tol'ko pri neobkhodimosti!

Konets Fazy 3!
