Map Mods: Phase 3

Updated - September 2021 By Marcos Elias

Introduction

Phase 3 of the map mod system introduces Vehicle Traffic, Trains, Functional Traffic Lights, and GPS!

IMPORTANT: To use these features, change to mapModVersion=3 in the [map] section of your .map.txt file.

Configuring Entry Points (Phase 3 Update)

In phase 3, entrypoints.txt gains new parameters.

You can specify if it is a Road or Urban route by creating empty files in the dest folder:

  • intercity.txt: Road Route (passengers only disembark at the end).
  • outofservice.txt: Garage/Reserved (no one boards).

Vehicle Traffic (aivehicles)

The configuration is similar to that of pedestrians. Create paths in 3D (e.g., avBrasil1.000, avBrasil1.001...).

Traffic Vehicles

Configuration file (.txt)

In the aivehicles folder (inside modelsDir):

[automatic_setup]
enabled=1
loop=0
reverse=0

[defaults]
isSpawner=1
spawnInterval=5
allowBicycle=0
leftBlinker=0
rightBlinker=0
  • spawnInterval: Interval for new cars to appear (increase to reduce density).
  • maxSpeed: Maximum speed in km/h.
  • isBusSpawner=1: If you want buses to appear on this path.

Trains (aitrains)

Trains follow defined rails in the same way as traffic. Folder: aitrains.

Train Example

Exclusive train parameters:

  • randomTimeToWaitAtStart=1: The first train appears at a random time.
  • spawnTimeInterval=120: Interval in seconds between trains (e.g., 2 minutes).
  • trainType=0: Train type (default 0).

IMPORTANT: Trains do not collide with obstacles, so ensure the path is clear! Use high spawnTimeInterval so trains don't end up one behind the other.

Traffic Lights

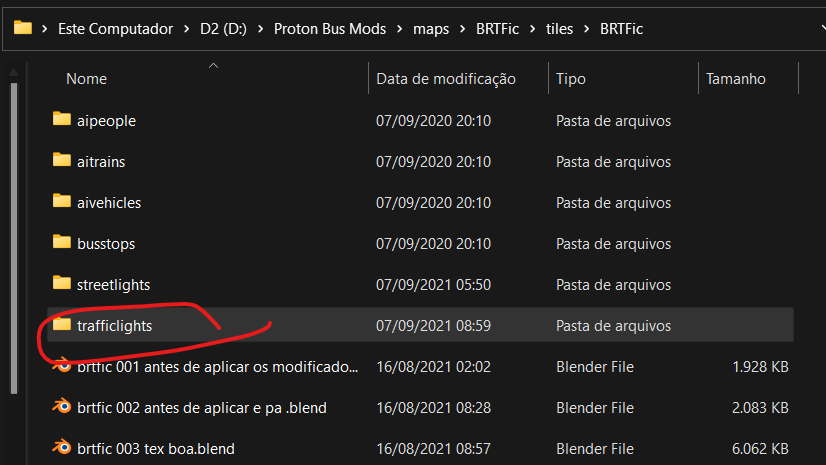

Traffic lights control the flow of vehicles. The files are in the trafficlights folder.

Traffic Light Structure

Working by "Ticks"

The traffic light works by states or "ticks". Example:

Ticks Scheme

  1. Tick 1: Lane 1 Green, Lane 2 Red.
  2. Tick 2: Lane 1 Yellow, Lane 2 Red.
  3. Tick 3: Lane 1 Red, Lane 2 Green.

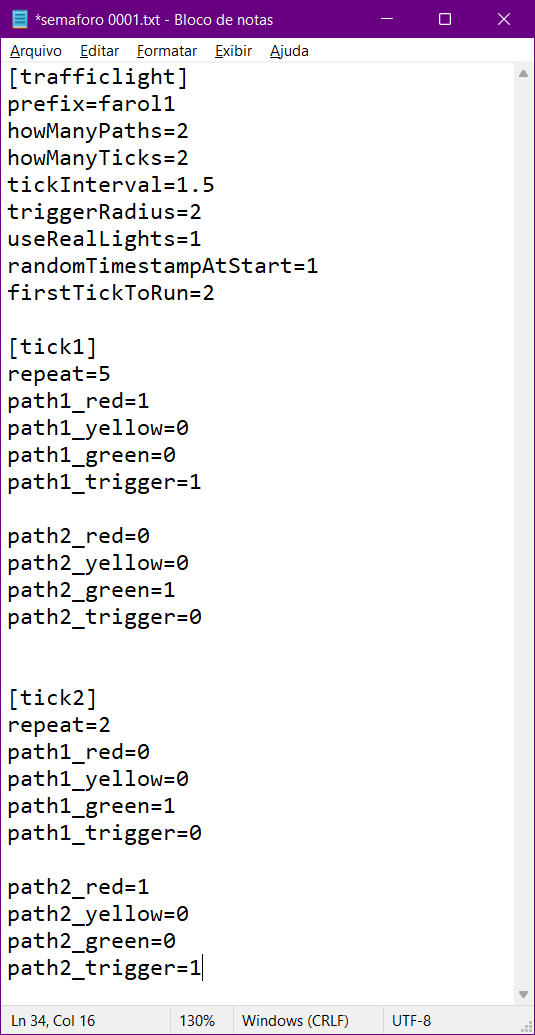

Configuration in txt:

[trafficlight]
prefix=semaforo001
howManyPaths=2
howManyTicks=4
tickInterval=1
triggerRadius=1.5
useRealLights=1

[tick1]
repeat=10
path1_red=0
path1_green=1
path2_red=1
path2_green=0
path1_trigger=0
path2_trigger=1
  • pathX_red/green/yellow: Defines if the light is on (1) or off (0).
  • pathX_trigger: Defines if the invisible block on the track is active (1) or not (0).

3D Configuration

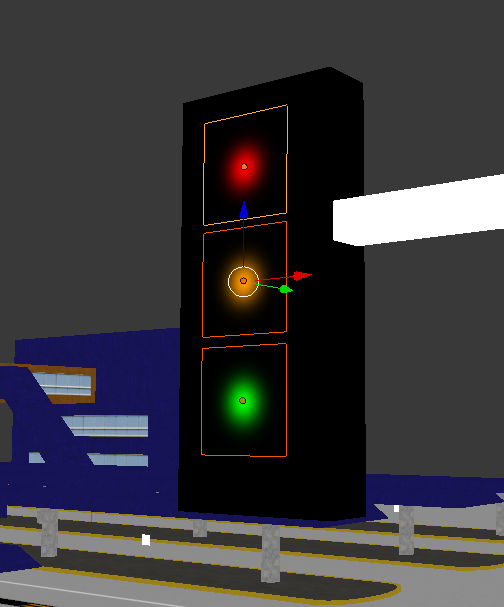

Use planes with texture (Additive shader) for the lights. Suggested names:

  • _farol1_path1_green_additive_
  • _farol1_path1_red_additive_

3D Traffic Light

Use invisible triggers to stop cars: _farol1_path1_trigger_

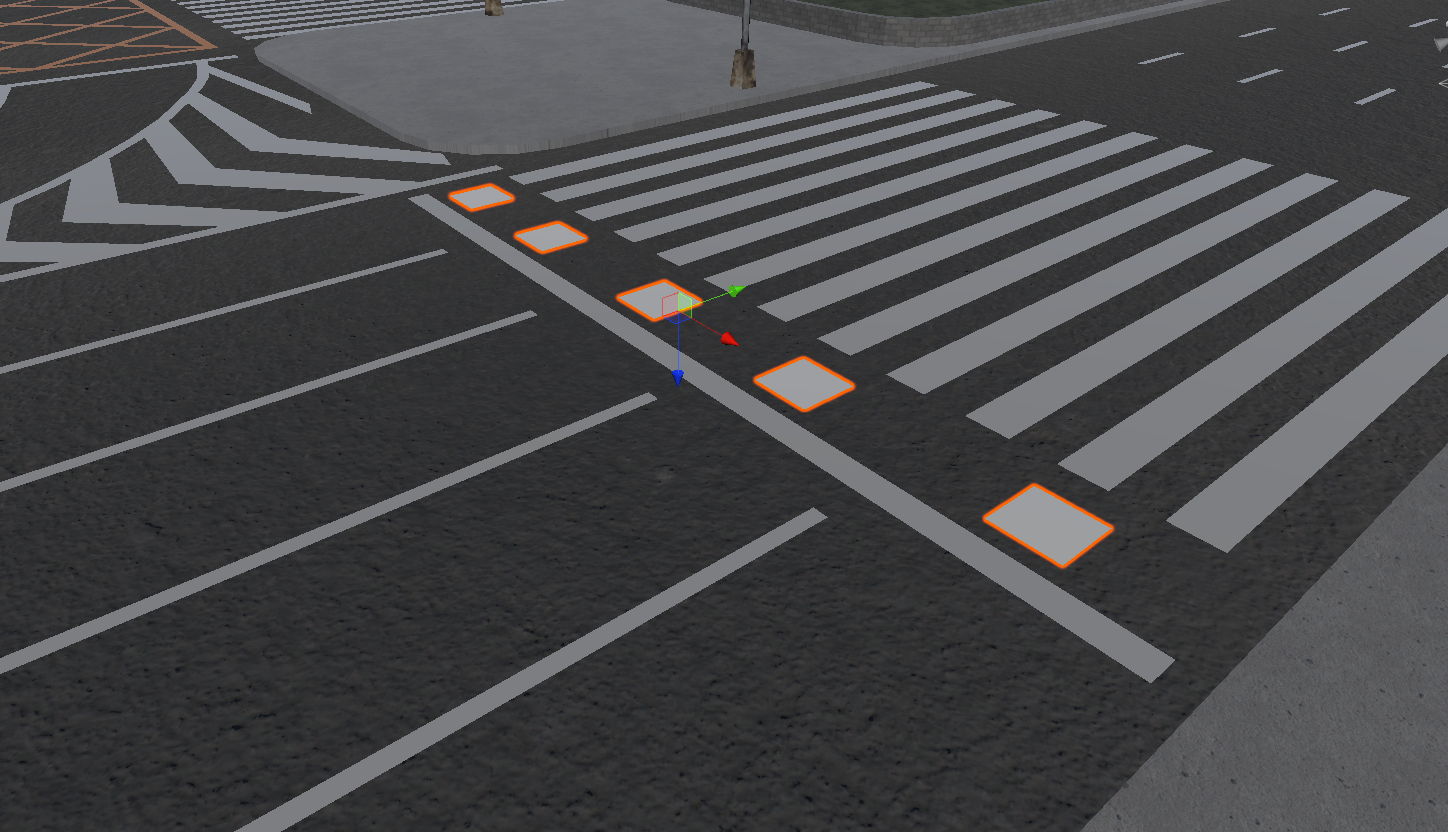

The trigger must be where cars should stop:

Traffic Light Trigger

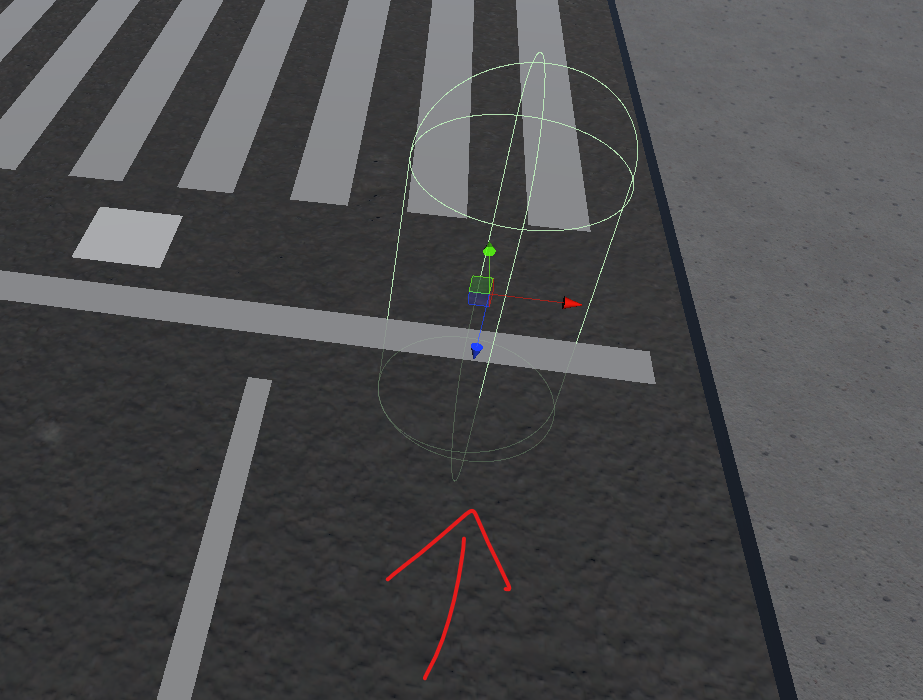

Trigger shape in the engine (capsule):

Trigger Shape

Lights and Environments

You can add real lights (Spot/Point) and fakes (glowing texture). Folder: streetlights.

Lights Configuration

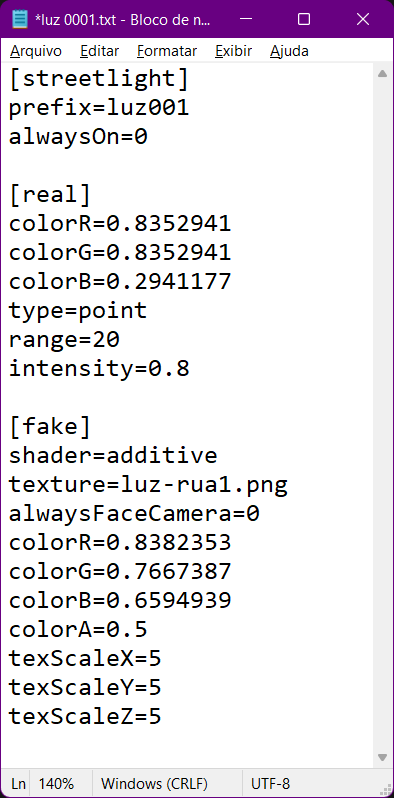

Configuration in txt:

[streetlight]
prefix=luz001
alwaysOn=0 (0=only night, 1=always)

[real]
colorR=1
colorG=0.9
colorB=0.8
range=20
intensity=1

[fake]
shader=additive
alwaysFaceCamera=1

In 3D:

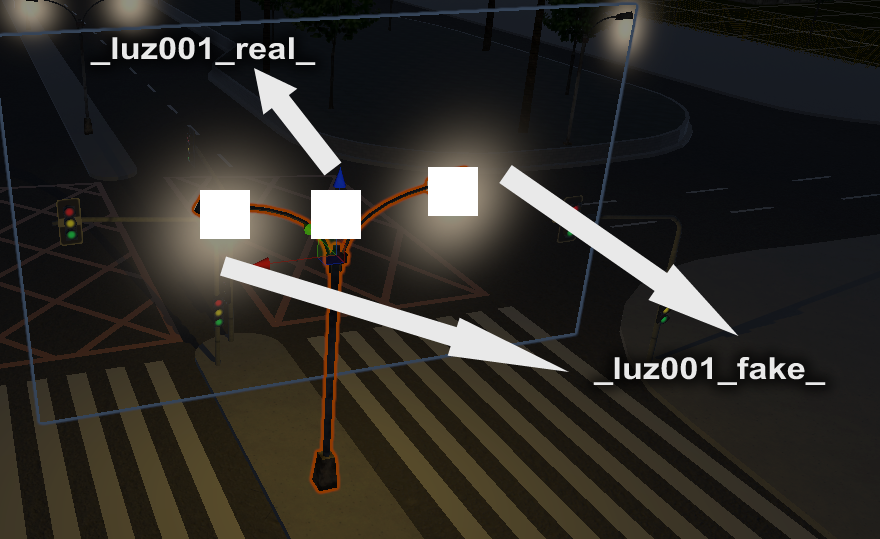

  • _luz001_real_: Object for real light (point light). Place a little below the bulb.
  • _luz001_fake_: Plane object with glowing texture (halo) on the bulb.

Pole Example

Application examples:

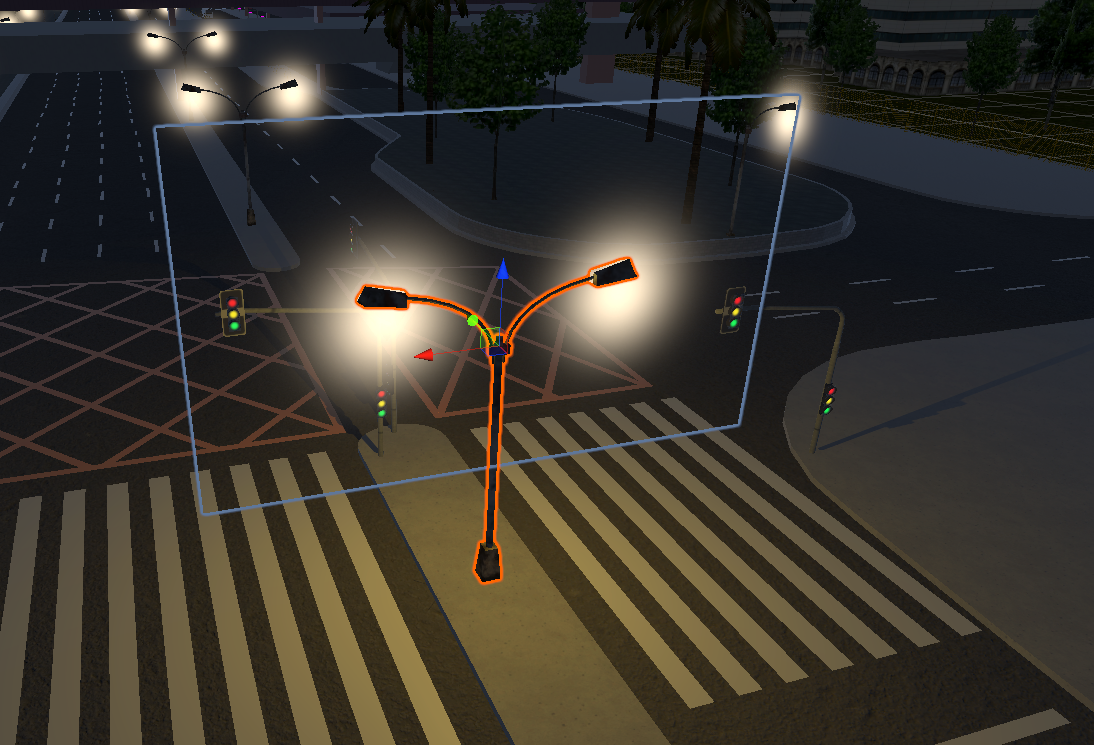

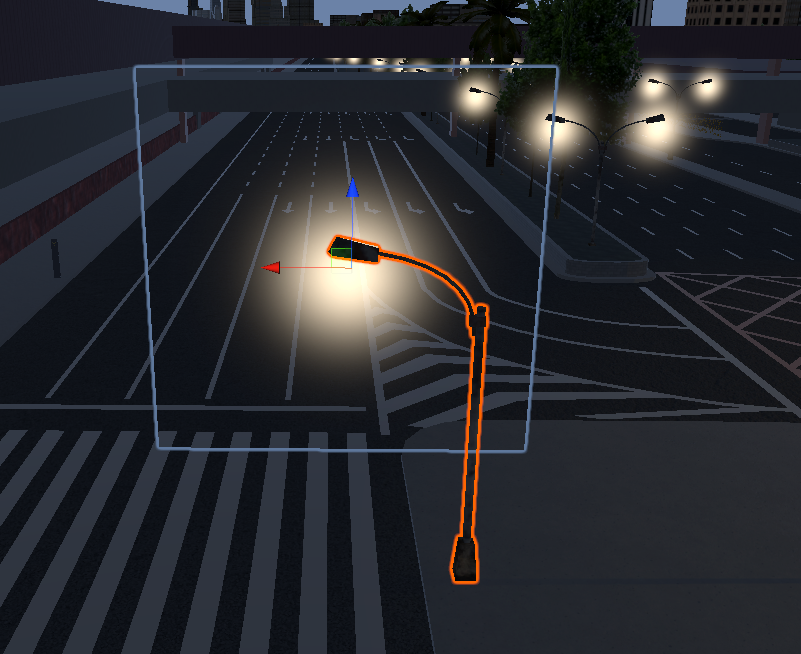

Double Pole Simple Pole Yellow Light

GPS

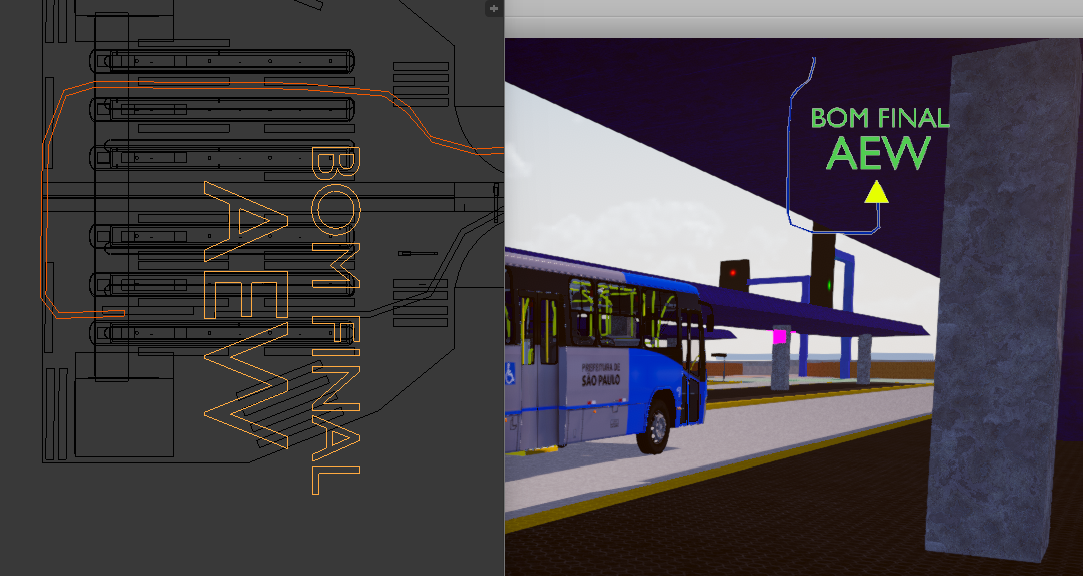

For the GPS to work, create a mesh floating over the route (road) with the name: _gps_ENTRYPOINT_NAME_

Example: _gps_309T-10 TP_.

GPS Example

TIP: If the GPS is very long, divide it into smaller parts to optimize.

Optimization and Special Commands

Random Objects (_rand_)

Use _rand_XX_ in the object name to define the chance of appearing (in %). Example: _rand_50_ (50% chance).

Allowed numbers: 1, 3, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 95, 99.

Random Object

Special Zones

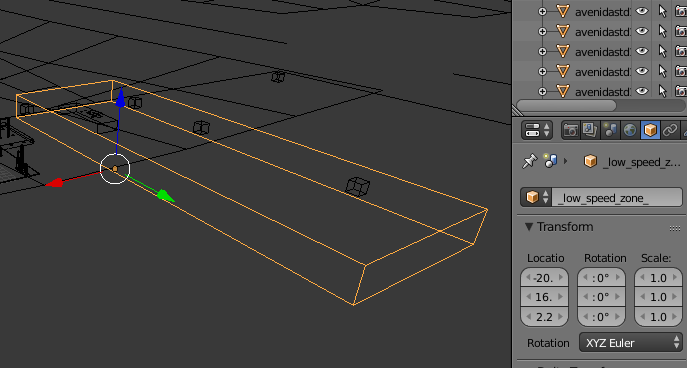

  • _low_speed_zone_: Invisible cube in terminals. Prevents passengers from complaining about low speed.

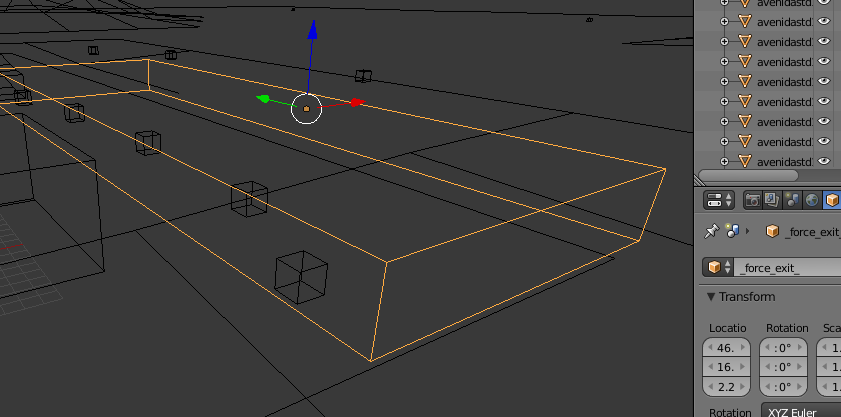

  • _force_exit_: Invisible cube near the final stop. Forces everyone to disembark.

Force Exit

Extra Details (_det1)

Objects named with suffix _det1.3ds (e.g., arvores_det1.3ds) are only loaded if the "Extra Details" option is enabled in the game. Use for heavy decoration.

Shimmering Textures (Z-Fighting)

To prevent floor textures from blinking, create a .config.txt file for the texture (e.g., asfalt.png.config.txt).

Texture Config

This fixes "glitter" on large terrain textures. Use only if necessary!

End of Phase 3!
